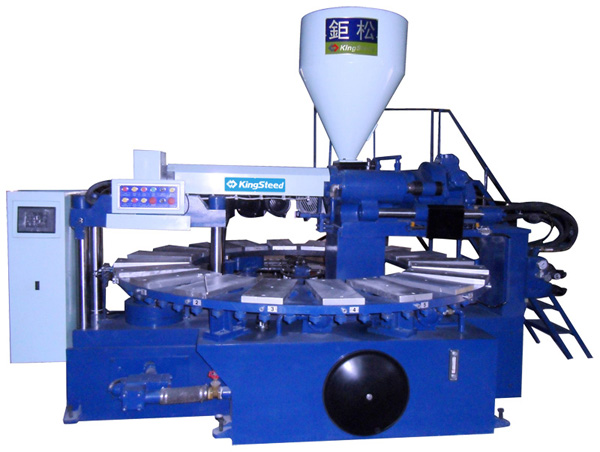

Features of machinery
1. This model is specially designed to manufacture various kinds of single-color sole for sports shoes,leisure shoes,man and ledy shoes in general,etc.
2. This unit is suitable for all kinds of thermoplastic raw materials,foaming or non-foaming,such as PVC,TPR,etc.
3. lts superiorities are asfollowing:begin in big spiral diameter,large injection by comperial,high in output,automatic in digital computer and form indifferent injection components in 20minutes.
4. Employs proportional pressure control,The injection pressure on each station is isdividually controlled,The unit is good helper in profit-makings.
5. Automatically controlled by computer with stability,easy operation and good attinity.
|
MODEL |
UNIT |
KS-176 |
|
Number of work station |
Stations |
20 |
|
Productivity per hour |
Pairs |
150-200 |
|
Screw Diameter |
m/m |
Ø55×1 |
|
crew Length diameter ratio |
L/D |
22:1 |
|
Max.injection volume |
Cm³ |
890×1 |
|
Max.injection pressure |
Kg/cm² |
550 |
|
Mould clamping force |
Tons |
80 |
|
Mould space(L×W×H) |
m/m |
450×210×185 |
|
Motor |
Kw/hp |
15/20 |
|
Auto thermo controller |
Sets |
4 |
|
Heating bands power |
Kw |
8 |
|
Tal electric consumption |
Kw |
30 |
|
Machine dimension(L×W×H) |
m |
4.5×3.2×2.4 |
|
Weight(Approximate) |
Tons |
5.5 |
